KRAFTWELD catalog
Electrofusion Welding Machines
Electrofusion controllers for PE fittings — standard and drainage models with scraper and optional printer / scanner accessories.
5 product lines
Machines & tools in this series
Models and ranges match the KRAFTWELD catalog. Ask Global Remote for current Musaffah stock, voltage options, and accessories.
| Product | Range | Model |
|---|---|---|

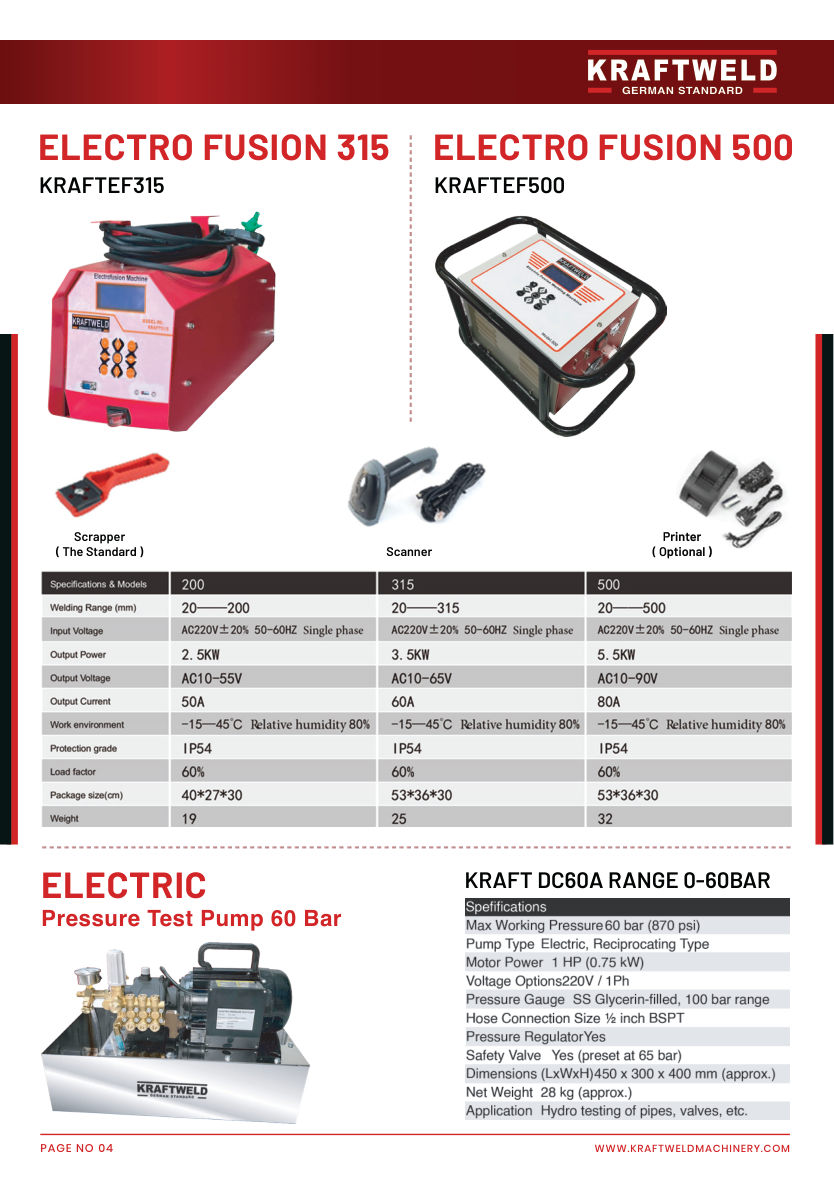

Electro Fusion 200 AC 220V · 2.5 kW · output 10–55V · IP54 · ~19 kg Model: EF 200 | 20–200 mm | EF 200 |
Electro Fusion 315 AC 220V · 3.5 kW · output 10–65V · scraper standard · ~25 kg Model: KRAFT EF315 | 20–315 mm | KRAFT EF315 |
Electro Fusion 500 AC 220V · 5.5 kW · output 10–90V · scanner · printer optional · ~32 kg Model: KRAFT EF500 | 20–500 mm | KRAFT EF500 |
Electro Fusion 160 (Drainage) Drainage electrofusion · 2.5 kW · time 1–9999 s Model: EFD 160 | 20–160 mm | EFD 160 |
Electro Fusion 315 (Drainage) Drainage electrofusion · scraper standard · printer optional Model: KRAFT EFD315 | 20–315 mm | KRAFT EFD315 |
